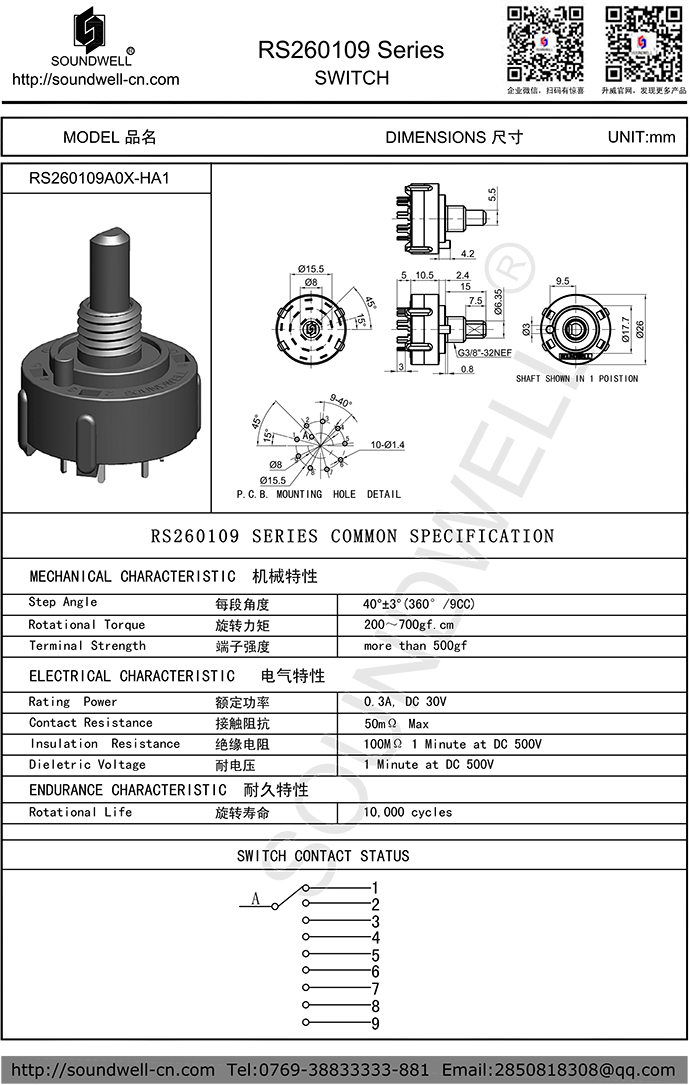

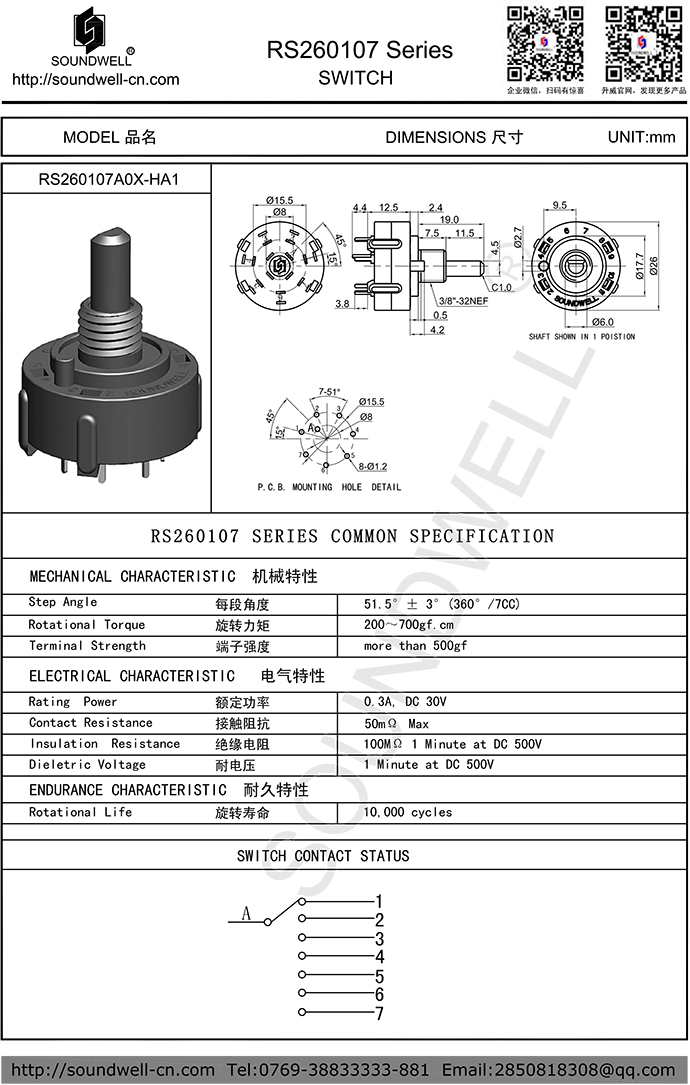

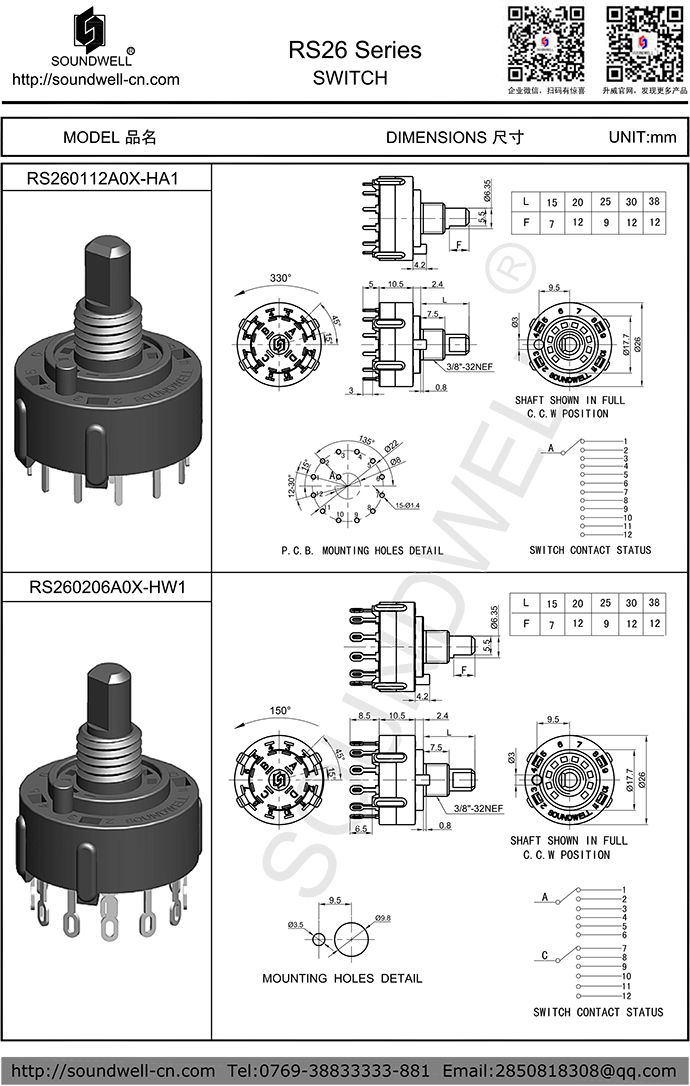

RS26 Insulated Shaft Rotary Route Switch
| Multiple Switch Model： |
RS26 series
|
| Name： | RS26 Insulated Shaft Rotary Route Switch |
| Main Specifications: | Dimensions: 26mm Rated power: DC30V 0.3A Contact resistance: 100mΩ Max Number of positions: 2～12 Operating temperature: -20℃～70℃ Rotational life: 10,000 cycles Min |
| Product Features： |
Insulated shaft with clear sense of clicks; 1-4 poles and 2-12 positions; |
| Applications： |
Home appliances such as micro- wave ovens, washing machines, audio devices, health care systems or other electronic products; The main functions are function switching, speed adjustment, temperature adjustment and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 200~1000gf.cm
2. Step angle: 30°±3°
3. Number of positions: 2～12
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 100mΩ Max
2. Rated power: DC30V 0.3A
3. Insulation resistance: 100M? 1 Minute at DC 500V
4. Dielectric voltage: 1 Minute at AC 500V
5. Contact mode: Short circuit type/Non short circuit type
THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
