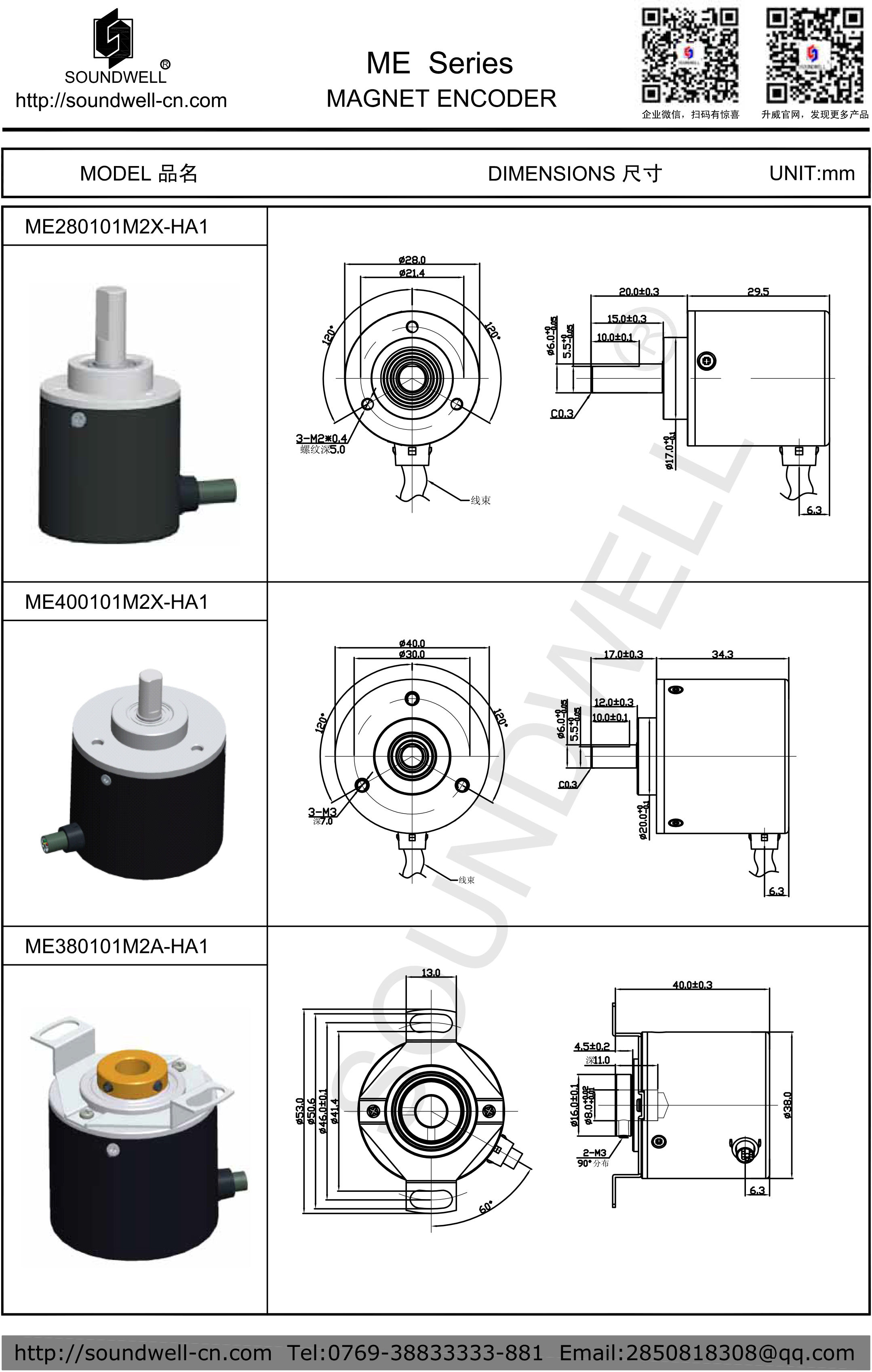

ME28/38/40/60 Metal Shaft Incremental Magnetic Encoder
| Magnetic encoder model: |
ME28/ME38/ME40/ME60 series |
| name: |
Magnetic Incremental Encoder |
| Main specifications: | Dimensions: 28/38/40/60 mm Rated power: 5~26Vcc, 40mA; Response time: 1us Max Response frequency: 300KHz Phase difference: △T=0.25T±0.125T Operating temperature: -40 ° C~85 ° C; |
| Features: |
Not easy to be affected by dust and condensation; Long life with low cost; Contactless sensing technologies; Short response time; |
| Application areas: |
Robots, automated production lines and other industrial applications. It can also be used as a high- speed signal input element in PLC applications. |
ONE、MECHANICAL CHARACTERISTIC
1. Starting torque: 1mN.m
2. Rotational angel: 360°
3. Inertia torque: 1x10-6 kg.m2
4. Maximum speed: 6,000r/min
5. Shaft load: 50N Max (radial direction); 20N Max (axial direction)
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 10 pulses Min
2. Phase difference: △T=0.25T±0.125T
3. Power rating: 5～26Vcc, 40mA
4. Insulation resistance: 20M?
5. Dielectric voltage: 1 Minute at AC 500V
6. Respond time: 1us Max
7. Respond frequency: 300kHz
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
