| Encoder model： | EC35 series |
| Name： |
EC35 Hollow Shaft Incremental Encoder |
| Main Specifications: | Dimensions: ∮35mm Rated voltage: DC 5V； Number of detent: 18/20/30； Pulses: 10/15/18/20； Working temperature: -40°C~85°C； Rotational life: 50,000 cycles Min； |
| Product Features： |
Low profile with long life; Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring. |
| Applications： |
Automotive electronics, household appliances, audio products and other related electronic devices; Mainly play the role of volume adjustment, temperature adjustment, frequency modulation, function switching and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 50~300gf.cm
2. Number of detent: 20 (Step angle: 18±3°); 30 (Step angle: 12±3°); 18 (Step angle: 20±3°)；
3. Shaft wobble: 0.2 mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 10/15/18/20 pulses/360°
2. Phase difference: ≥4ms
3. Rated voltage: DC 5V
4. Insulation Resistance: 10M? 1 Minute at DC 110V
5. Dielectric Voltage: 1 Minute at AC 110V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

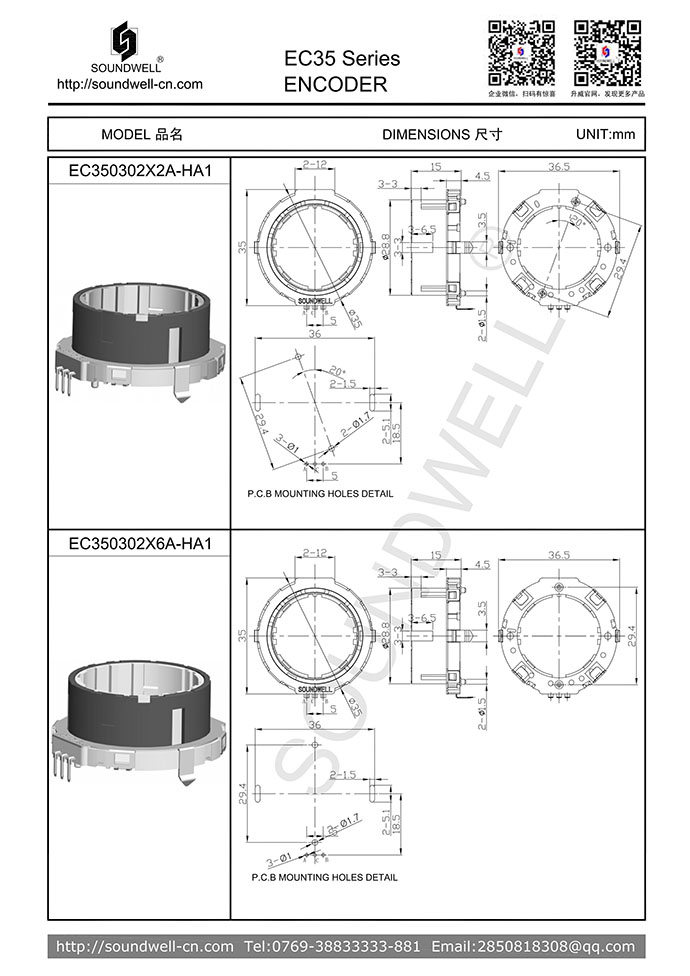

.jpg)

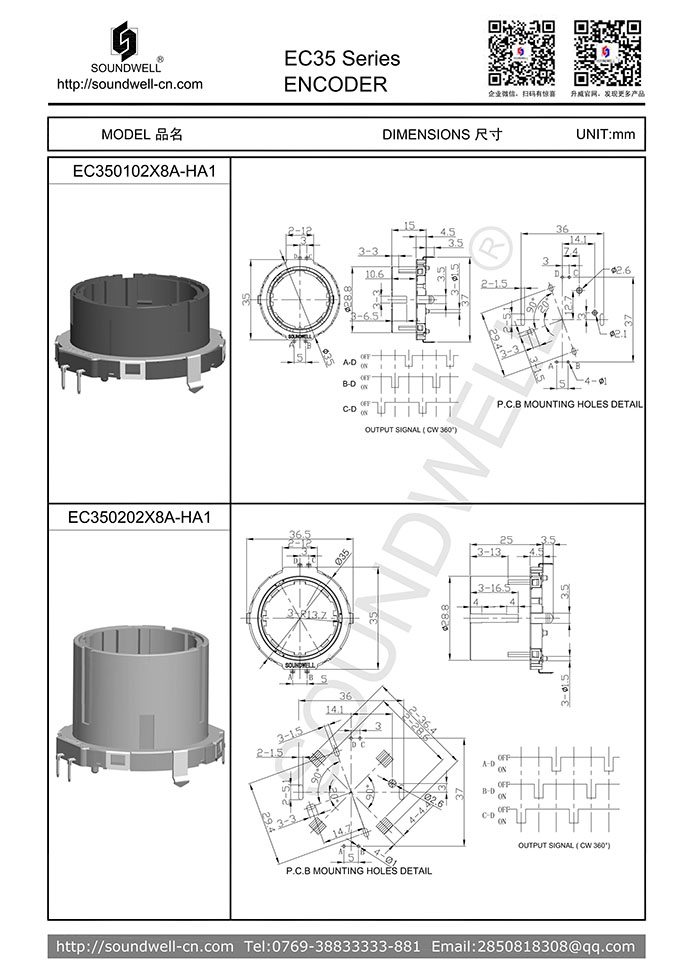

.jpg)

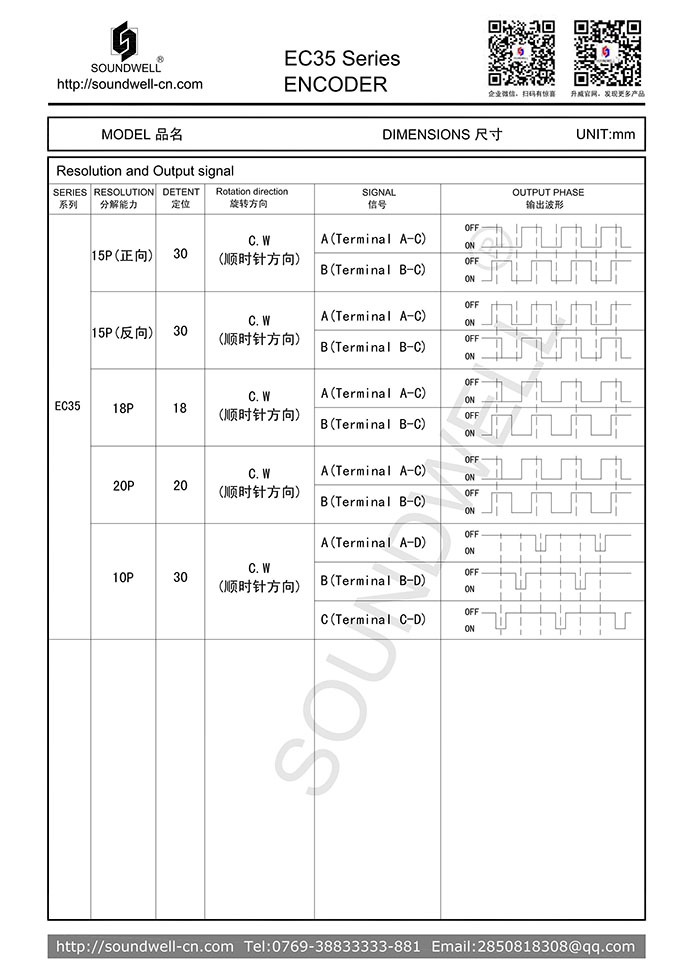

.jpg)

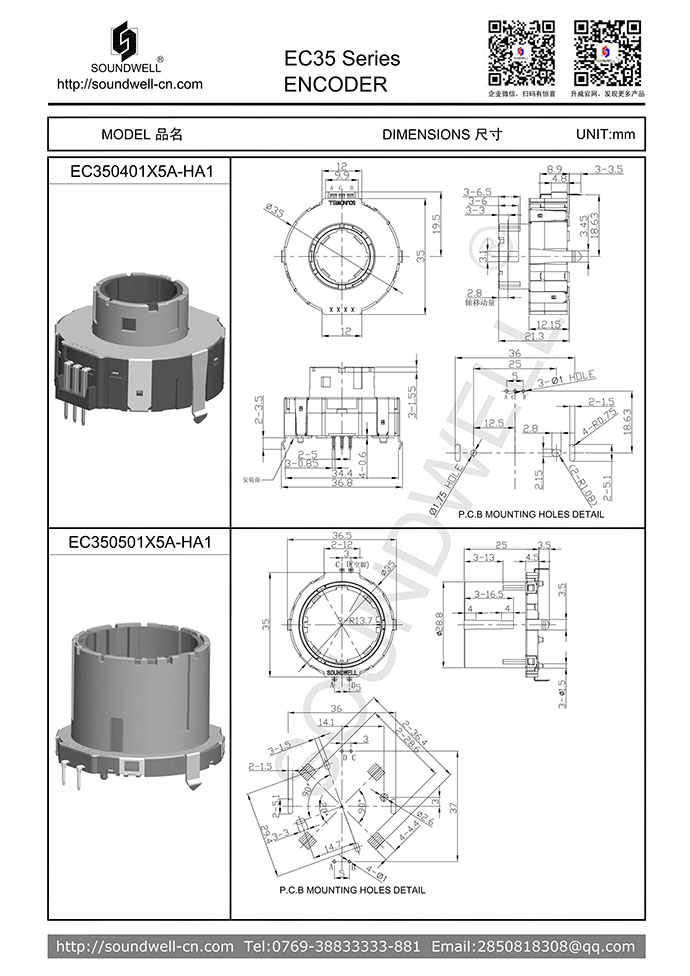

.jpg)
